Receipt Template Editor

The print templates follow W3C HTML standards (see http://w3schools.com/html/default.asp) and can make use of CSS and Angular JS to a certain extent.

The Receipt Template Editor can be found at: Administration → Workstation → Print Templates

The Editor can also be found on the default home page of the staff client.

Receipts come in various types: Bills, checkout, items, holds, transits and Payments.

Receipt Templates

This is a complete list of the receipts currently in use in Evergreen.

Table 54.1. List of Receipts

Bills, Current

Listing of current bills on an account.

Bills, Historic

Listing of bills that have had payments made on them. This used on the Bill History Transaction screen.

Bills, Payment

Patron payment receipt

Checkin

List of items that have been entered in to the check-in screen.

Checkout

List of items currently checked out by a patron during the transaction.

Hold Transit Slip

This is printed when a hold goes in-transit to another library.

Hold Shelf Slip

This prints when a hold is fulfilled.

Holds for Bib Record

Prints a list of holds on a Title record.

Holds for Patron

Prints a list of holds on a patron record.

Hold Pull List

Prints the Holds Pull List.

Hold Shelf List

Prints a list of hold that are waiting to be picked up.

In-House Use List

Prints a list of items imputed into In-house use.

Item Status

Prints a list of items imputed into Item Status.

Items Out

Prints the list of items a patron has checked out.

Patron Address

Prints the current patrons address.

Patron Note

Prints a note on a patron’s record.

Renew

List of items that have been renewed using the Renew Item Screen.

Transit List

Prints the list of items in-transit from the Transit List.

Transit Slip

This is printed when an items goes in-transit to another location.


Editing Receipts

To edit a Receipt:

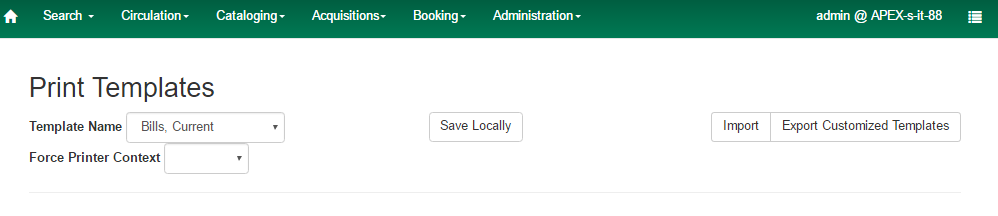

  1. Select Administration → Workstation → Print Templates.
  2. Choose the Receipt in the drop down list.
  3. If you are using Hatch, you can choose different printers for different types of receipts with the Force Content field. If not, leave that field blank. Printer Settings can be set at Administration → Workstation → Printer Settings.

    select checkout
  4. Make edits to the Receipt on the right hand side.

    receipt screen
  5. Click out of the section you are editing to see what your changes will look right on the Left hand side.
  6. Click Save Locally in the Upper right hand corner.

Formatting Receipts

Print templates use variables for various pieces of information coming from the Evergreen database. These variables deal with everything from the library name to the due date of an item. Information from the database is entered in the templates with curly brackets {{term}}.

Example: {{checkout.title}}

Some print templates have sections that are repeated for each item in a list. For example, the portion of the Checkout print template below repeats every item that is checked out in HTML list format by means of the ng-repeat in the li tag.

<ol>
<li ng-repeat="checkout in circulations">
<b>{{checkout.title}}</b><br/>
Barcode: {{checkout.copy.barcode}}<br/>
Due: {{checkout.circ.due_date | date:"short"}}<br/>
</li>
</ol>

Text Formatting

General text formatting

Goal

Original

Code

Result

Bold (HTML)

hello

<b>hello</b>

hello

Bold (CSS)

hello

<span style="font-weight:bold;">hello</span>

hello

Capitalize

circulation

<span style="text-transform:capitalize;">circulation</span>

Circulation

Currency

1

{{1 | currency}}

$1.00

Date Formatting

If you do not format dates, they will appear in a system format which isn’t easily readable.

Code

Result

2017-08-01T14:18:51.445Z

{{today | date:'short'}}

8/1/17 10:18 AM

{{today | date:'M/d/yyyy'}}

8/1/2017

Currency Formatting

Add " | currency" after any dollar amount that you wish to display as currency.

Example: {{xact.summary.balance_owed | currency}} prints as $2.50

Conditional Formatting

You can use Angular JS to only print a line if the data matches. For example:

<div ng-if="hold.email_notify == 't'">Notify by email: {{patron.email}}</div>

This will only print the "Notify by email:" line if email notification is enabled for that hold.

Example for checkout print template that will only print the amount a patron owes if there is a balance:

<span ng-if="patron_money.balance_owed">You owe the library ${{patron_money.balance_owed}}</span>

See also: https://docs.angularjs.org/api/ng/directive/ngIf

Substrings

To print just a sub-string of a variable, you can use a limitTo function. {{variable | limitTo:limit:begin}} where limit is the number of characters you are wanting, and begin (optional) is where you want to start printing those characters. To limit the variable to the first four characters, you can use {{variable | limitTo:4}} to get "vari". To limit to the last five characters you can use {{variable | limitTo:-5}} to get "iable". And {{variable | limitTo:3:3}} will produce "ria".

Original

Code

Result

The Sisterhood of the Traveling Pants

{{checkout.title | limitTo:10}}

The Sisterhood of th

123456789

{{patron.card.barcode | limitTo:-5}}

56789

Roberts

{{patron.family_name | limitTo:3:3}}

ber

Images

You can use HTML and CSS to add an image to your print template if you have the image uploaded onto a publicly available web server. (It will currently only work with images on a secure (https) site.) For example:

<img src="https://evergreen-ils.org/wp-content/uploads/2013/09/copy-Evergreen_Logo_sm072.jpg" style="width:150px;padding:5px;">

Sort Order

You can sort the items in an ng-repeat block using orderBy. For example, the following will sort a list of holds by the shelving location first, then by the call number:

<tr ng-repeat="hold_data in holds | orderBy : ['copy.location.name','volume.label']">

Subtotals

You can use Angular JS to add information from each iteration of a loop together to create a subtotal. This involves setting an initial variable before the ng-repeat loop begins, adding an amount to that variable from within each loop, and then displaying the final amount at the end.

<div>You checked out the following items:</div>
<br/>
<div ng-init="transactions.subtotal=0">                <!-- 1 -->
<ol>
<div ng-repeat="checkout in circulations">
  <li ng-init="transactions.subtotal=transactions.subtotal -- checkout.copy.price"> <!-- 2 -->
     <b>{{checkout.title}}</b><br/>
     Barcode: {{checkout.copy.barcode}}<br/>
     Due: {{checkout.circ.due_date | date:"M/d/yyyy"}}
  </li>
</div>
</ol>
<div style="font-weight:bold;">Total Amount Owed: {{patron_money.balance_owed | currency}}</div>
<div style="font-weight:bold;border:1px dotted black; padding:5px;text-align:center;">
You Saved<br/>
{{transactions.subtotal | currency}}<br/>              <!-- 3 -->
by borrowing from the library!</div>

1

This line sets the variable.

2

This adds the list item’s price to the variable.

3

This prints the total of the variable.

Exporting and importing Customized Receipts

Once you have your receipts set up on one machine you can export your receipts, and then load them on to another machine. Just remember to Save Locally once you import the receipts on the new machine.

Exporting templates

As you can only save a template on to the computer you are working on you will need to export the template if you have more than one computer that prints out receipts (i.e., more than one computer on the circulation desk, or another computer in the workroom that you use to checkin items or capture holds with)

  1. Export.
  2. Select the location to save the template to, name the template, and click Save.
  3. Click OK.

Importing Templates

  1. Click Import.
  2. Navigate to and select the template that you want to import. Click Open.
  3. Click OK.
  4. Click Save Locally.
  5. Click OK.

Warning

Clearing your browser’s cache/temporary files will clear any print template customizations that you make unless you are using Hatch to store your customizations. Be sure to export a copy of your customizations as a backup so that you can import it as needed.

Tip

If you are modifying your templates and you do not see the updates appear on your printed receipt, you may need to go into Administration → Workstation → Stored Preferences and delete the stored preferences related to the print template that you modified (for example, eg.print.template_context.bills_current).
